Introduction

¡@
¡@
Introduction
¡@
¡@

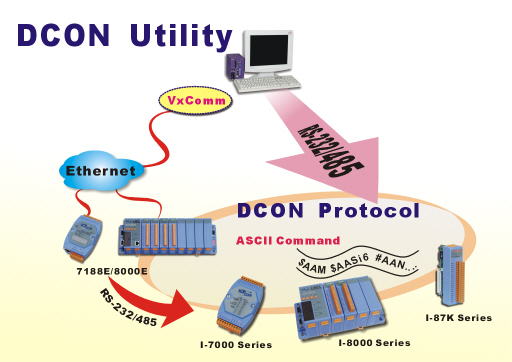

The DCON Utility is s toolkits kits that help user search the network , easily to Configure the I/O modules and test the I/O status via the serial port (RS-232/485) or ethernet port (using virtual com port). It support not only the DCON Protocol I/O modules but also the M Series I/O Modules ( Modbus RTU M-7K,M-87K and will support Modbus ASCII M-87K) now.
¡@
¡@
¡@
¡@
The main function of DCON Utility are list below :
  • COM Port : Configuration and setting for PC COM Port

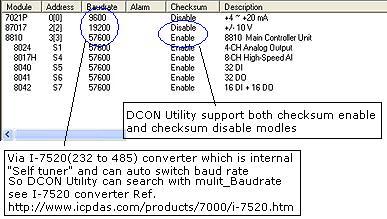

  • Search Network : Show modules on data bus

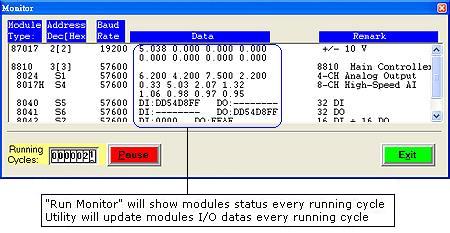

  • Run Monitoring : Utility will monitor network modules' I/O status every running cyde

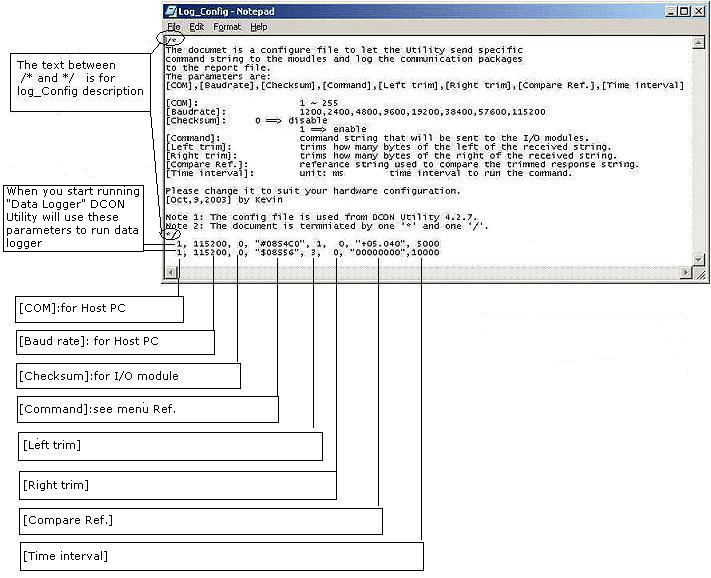

  • Run Data Logger : Utility use customized parameter to monitor the I/O modules and will make a log file for I/O data.

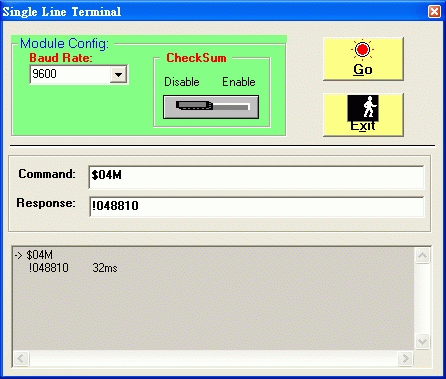

  • Terminal : for some situation users would want to use command to test module's function diretly.

Utility and development tool kit

DCON_Labview

  • Bundled driver for Labview
  • Module supported:
    I-7000/8000/87K series (with DCON protocol)
  • OS supported: Windows 98/NT/2000/XP

DCON_Indusoft

  • Bundled driver for Indusoft
  • Module supported:
    I-7000/8000/87K series (with DCON protocol)
  • OS supported: Windows 98/NT/2000/XP/CE

DCON_DLL

  • DLL library
  • Module supported:
    I-7000/8000/87K series (with DCON protocol)
  • Demo supported:
    VB/VC/BCB/Delphi (Source code included)
  • OS supported:Windows 98/NT/2000/XP

DCON_ActiveX

  • ActiveX (OCX) component
  • Module supported:
    I-7000/8000/87K series (with DCON protocol)
  • Demo supported:
    VB/VC/BCB/Delphi (Source code included)
  • OS supported: Windows 98/NT/2000/XP

DCON_Linux

  • Libraries for Linux platform
  • Module supported:
    I-7000/8000/87K series (with DCON protocol)
  • OS supported: Linux

DCON_DDE

  • DDE server
  • Module supported:
    I-7000/8000/87K series (with DCON protocol)
  • OS supported: Windows 98/NT/2000/XP

NAPOPC Server

  • OPC server
  • Module/Controller supported:
    I-7000/8000/87K series (with DCON protocol)
  • Modbus embedded controller
  • ISaGRAF embedded controller
  • OS supported: Windows 98/NT/2000/XP
¡@
