Modules Supported by the 8000-MTCP series

High Profile vs. Low Profile

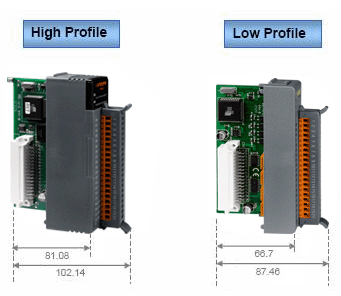

ICP DAS I/O modules can be classified as either high profile or low profile depending on the different form factor. Basically, high profile and low profile modules that have the same model number will also have same number of I/O channels. For example, the I-8054 and I-8054W modules both have 8 Digital Input and 8 Digital Output channels. However, except for the number of I/O channels, other specifications could be different, and you should ensure that the specifications of a particular module are suitable for your application. For example, the DI logic high level of the I-8054W module is +10 to +50 V, but is +3.5 to +30 V for the I-8054 module.


The following is a list of supported MCU (Main Control Unit) and I/O expansion units:
  I-8K Series I-87K Series
High Profile Low Profile High Profile Low Profile
iP-8841-MTCP
iP-8441-MTCP
Y - Y -
ET-87P4-MTCP
ET-87P8-MTCP
-
-
Y
-
I-8431-MTCP
I-8831-MTCP
I-8431-80-MTCP
I-8831-80-MTCP
Y Y Y Y
I-8KE4/8-MTCP Y Y Y Y
Note 1: Low profile I/O modules are not compatible with iP-8841-MTCP/iP-8441-MTCP, ET-87P4-MTCP/ET-87P8-MTCP controllers.
Note 2: ET-87P4-MTCP/ET-87P8-MTCP controllers only support high profile I-87K series modules.


Version History of Supported I-8K Series Modules
I-8K Series I/O Modules
Type High Profile
Low Profile
Description
I/O Scan Version Date
Analog I/O Modules
(Selection Guide)
The sampling rate for AI modules can range from 1 to 100k S/s, depending on the software
I-8014W
8/16 AI (Scan rate = 700 Hz)
1.6.2
2012/06/08
I-8017DW
8/16 AI (Scan rate = 700 Hz) 1.6.2
2012/06/08
I-8017HCW
8/16 AI (Scan rate = 700 Hz) 1.6.2
2012/06/08
I-8017HW I-8017H 8/16 AI (Scan rate = 700 Hz) 1.0.0
2002/09/01
I-8024W I-8024 4 AO (mA, V)
1.0.0 2002/09/01
Digital I/O Modules
(Selection Guide)
Access time can be up to 20 kHz depending on the software
I-8037W I-8037 16 DO
1.0.0 2002/09/01
I-8040W I-8040 32 DI
1.0.0 2002/09/01
I-8040PW
32 DI
1.0.0 2002/09/01
I-8041W I-8041 32 DO
1.0.0 2002/09/01
I-8041AW
32 DO
1.0.0 2002/09/01
I-8042W I-8042 16 DI + 16 DO
1.0.0 2002/09/01
I-8046W
16 DI
1.6.2
2012/06/08
I-8048W I-8048
-
-
I-8050W I-8050 16 DIO
1.6.2
2012/06/08
I-8051W I-8051 16 DI
1.0.0 2002/09/01
I-8052W I-8052 8 DI
1.0.0 2002/09/01
I-8053W I-8053 16 DI
1.0.0 2002/09/01
I-8053PW
16 DI
1.0.0 2002/09/01
I-8054W I-8054 8 DI + 8 DO
1.0.0 2002/09/01
I-8055W I-8055 8 DI + 8 DO
1.0.0 2002/09/01
I-8056W
I-8056 16 DO
1.0.0 2002/09/01
I-8057W
I-8057 16 DO
1.0.0 2002/09/01
I-8058W
I-8058 8 DI (AC input)
1.0.0 2002/09/01
I-8060W
I-8060 6 DO
1.0.0 2002/09/01
I-8063W
I-8063
4 DI + 4 DO
1.0.0 2002/09/01
I-8064W
I-8064 8 DO
1.0.0 2002/09/01

I-8065 8 DO 1.0.0 2002/09/01

I-8066 8 DO 1.0.0 2002/09/01
I-8068W
I-8068 8 DO 1.0.0 2002/09/01
I-8069W
I-8069 8 DO 1.0.0 2002/09/01

I-8077
-
-
Counter/Frequency Module
I-8080 4/8 Counter/Frequency
1.3.1
2005/01/27
I-8084W
4/8 Counter/Frequency/Encoder
1.6.0
2012/01/03
PWM Module I-8088W

-
-
Motion Module
(Selection Guide)		 I-8090W
I-8090-G
1.1.4
2003/05/27

Version History of Supported I-87K Series Modules
I-87K Series I/O Modules
Type High Profile
Low Profile
Description
I/O Scan Version Date
Analog Input Modules
(Selection Guide)		 I-87005W

-
-
I-87013W I-87013 4 AI (RTD)
1.0.0
2002/09/01
I-87015W
7 AI (RTD)
1.5.1
2006/04/14
I-87015PW
7 AI (RTD) 1.6.2
2012/06/08
I-87016W
4 AI
-
-
I-87017W I-87017 8 AI (mA, mV, V)
1.0.0 2002/09/01
I-87017W-A5
8 AI (High voltage input)
1.6.2
2012/06/08
I-87017RW
8 AI
1.6.2 2012/06/08
I-87017RCW
8 AI (mA)
1.6.2 2012/06/08
I-87017DW
8 AI
1.6.2 2012/06/08
I-87017ZW
10/20 AI
1.6.0
2012/01/03
I-87018W I-87018 8 AI (mA, mV, V, Thermocouple)
1.0.0 2002/09/01
I-87018RW
8 AI (Thermocouple)
1.6.2 2012/06/08
I-87018PW

1.6.2 2012/06/08
I-87018ZW

1.6.0 2012/01/03
I-87019PW

1.6.2 2012/06/08
I-87019RW

1.5.7
2007/09/01
I-87019ZW

1.6.0
2012/01/03
Analog Output Modules
(Selection Guide)		   I-87022 2 AO
1.5.6
2007/03/21
I-87024CW

-

I-87024DW

1.6.2 2012/06/08
I-87024RW

1.6.2 2012/06/08
I-87024W I-87024 4 AO (mA, V) 1.0.0
2002/09/01
  I-87026 2 AO
1.5.6
2007/03/21
I-87028CW
8 AO (mA)
1.5.9
2010/05/27
Multifunction Modules
(Selection Guide)		 I-87026PW

- -
Digital I/O Modules
(Selection Guide)
DI channels can be used to read status and low speed (100 Hz Max.) counter values.
I-87037W

1.6.2 2012/06/08
I-87040W I-87040 32 DI
1.0.0
2002/09/01
I-87040PW

1.6.2 2012/06/08
I-87041W I-87041 32 DO
1.0.0
2002/09/01
I-87042W

1.6.2 2012/06/08
I-87046W

1.5.1
2006/04/14
I-87051W I-87051 16 DI
1.0.0
2002/09/01
I-87052W I-87052 8 DI
1.0.0 2002/09/01
I-87053PW

1.6.2 2012/06/08
I-87053W I-87053 16 DI
1.0.0 2002/09/01
I-87053W-A5

1.6.2 2012/06/08
I-87053W-AC1

1.6.2 2012/06/08
I-87053W-E5

1.6.2 2012/06/08
I-87054W I-87054 8 DI + 8 DO
1.0.0 2002/09/01
I-87055W I-87055 8 DI + 8 DO 1.0.0 2002/09/01
I-87057W I-87057 16 DO
1.0.0 2002/09/01
I-87057PW

1.6.2 2012/06/08
I-87058W I-87058 8 DI (AC input)
1.0.0 2002/09/01
I-87059W

1.6.2 2012/06/08
I-87061W
16 DO
1.5.9
2010/05/27
I-87063W I-87063 4 DI + 4 DO
1.0.0 2002/09/01
I-87064W I-87064 8 DO
1.0.0 2002/09/01
I-87065W I-87065 8 DO
1.0.0 2002/09/01
I-87066W I-87066 8 DO
1.0.0 2002/09/01
I-87068W I-87068 8 DO
1.0.0 2002/09/01
I-87069W I-87069
1.6.2 2012/06/08
Counter/Frequency Module I-87082W I-87082
-
-
I-87084W

-
-
I-87088W

-
-
I-87089W

-
-
