841X Quick hardware installation

　

    This page is a simple 841X (8000 Serial RS-485 communication interface) hardware installation. If want to get more information,please refer to user manual or download manual from FTP

　

---

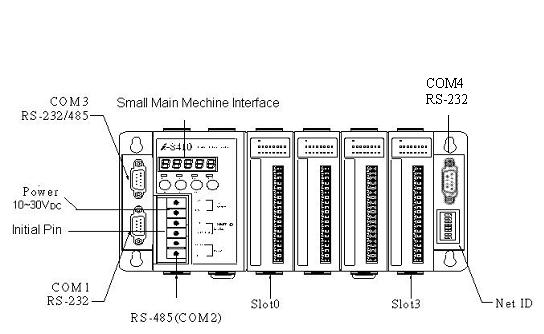

Front view of 8411/8811

i-8411:

　

　

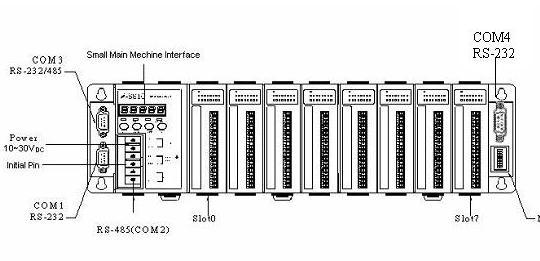

i-8811:

　

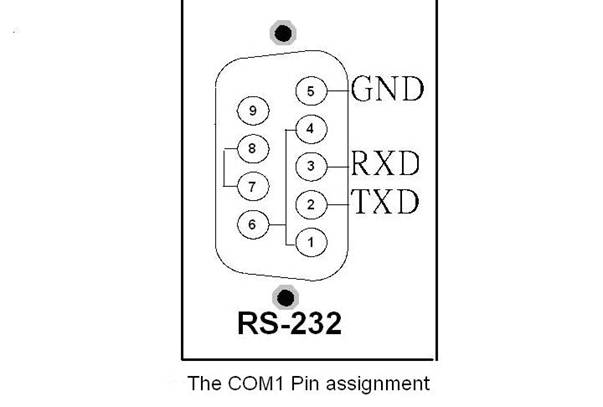

Pin assignment of COM1 Port

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

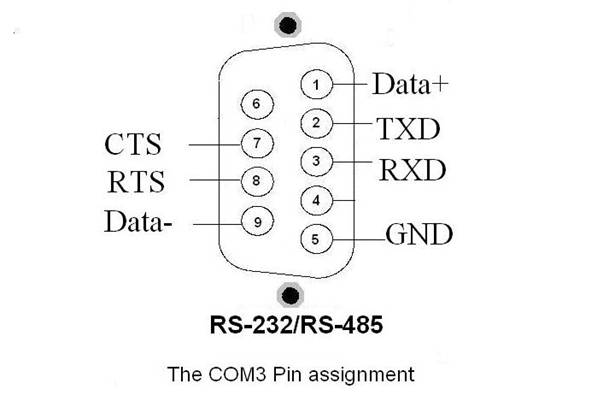

Pin assignment of COM3 Port

　

　

　

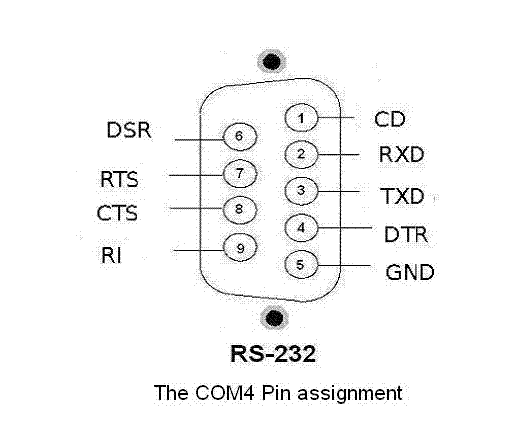

Pin assignment of COM4 Port

　

　

　

8411/8811 installation

Step1: Mount the I/O unit

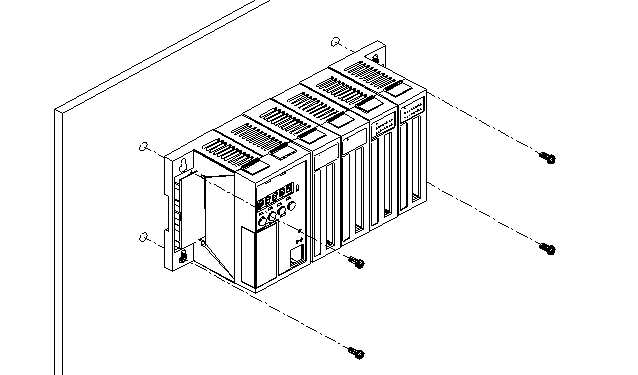

 Method (a): using screw panel mounting

　

　

　

　

　

　

　

　

　

　

　

　

　

Method (b): DIN-Rail mounting



　

　

　

　

　

　

　

　

　

　

　

　

　

　

Step2: Attach power supply (10 ~ 30 VDC)

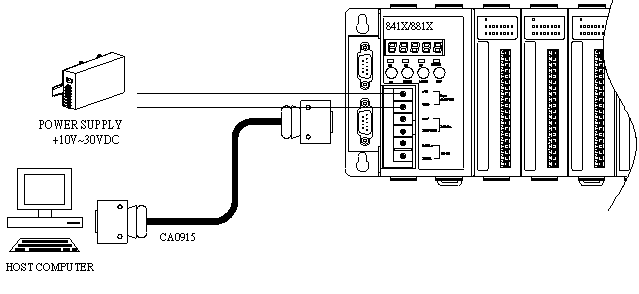

Communicate with RS-232 interface

　

　

　

　

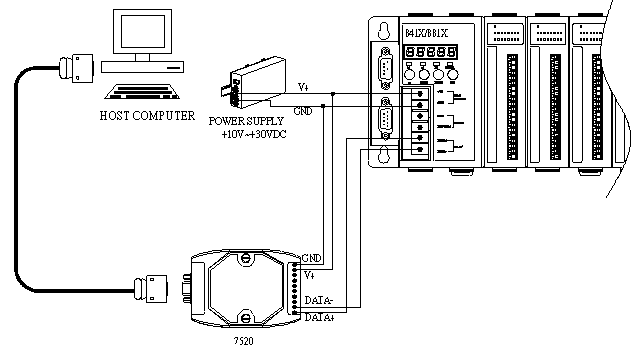

Communicate with RS-485 interface
