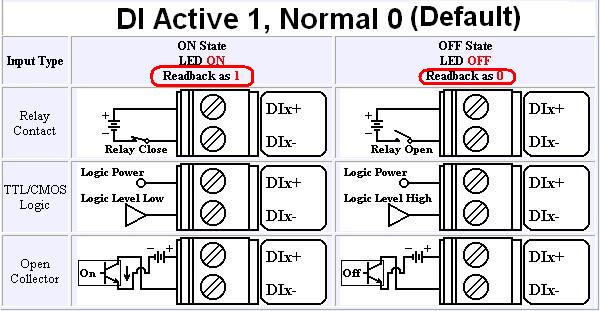

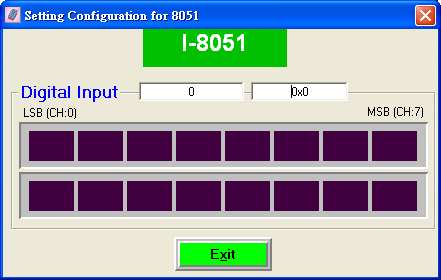

The default value of Digital Input modules which
inserted into the i-8000 MCU unit are display as bleow.

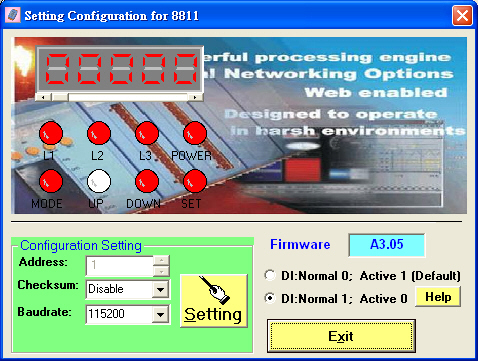

This command ~AAD and ~AADVV only works when DI or DIO modules
(includes 8K and 87K modues)
inserted into 8K MCU unit.
The DCON firmware must be A3.05 or above
The DCON Utility must be 4.3.9 or above
The supported modules are list below
32*DI: 8040,87040
16*DI: 8051,8053,87051,87053
8*DI: 8052,8058,87052,87058
16*DI + 16*DO: 8042
8*DI + 8*DO: 8054,8055,8077,87054,87055
4*DI + 4*DO: 8063,87063

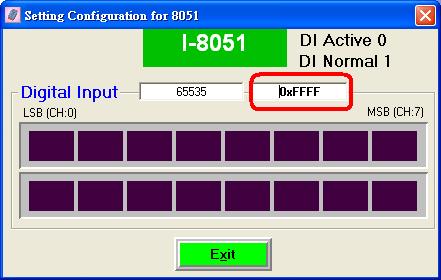

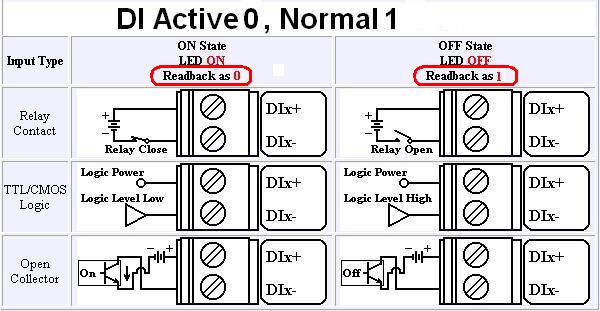

After set DI active state to Normal 1, Active 0,the value of DI or DIO
modules'
values are reversed.
|
