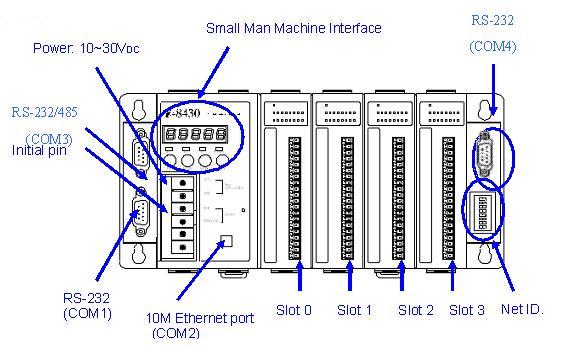

Front view of 8431/8831
8431:
8831:
This page is a simple 843X (8000 Serial Ethernet communication interface) hardware installation. If want to get more information,please refer to user manual or download manual from FTP

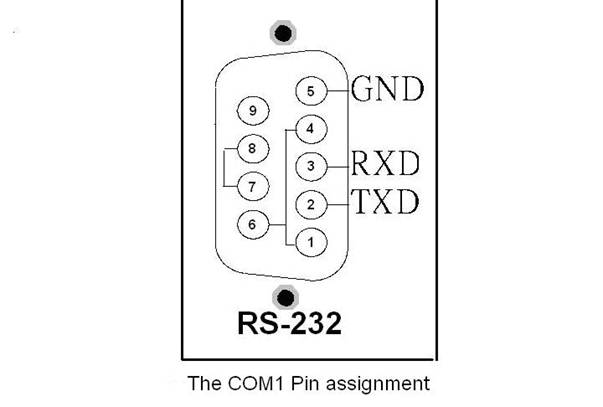

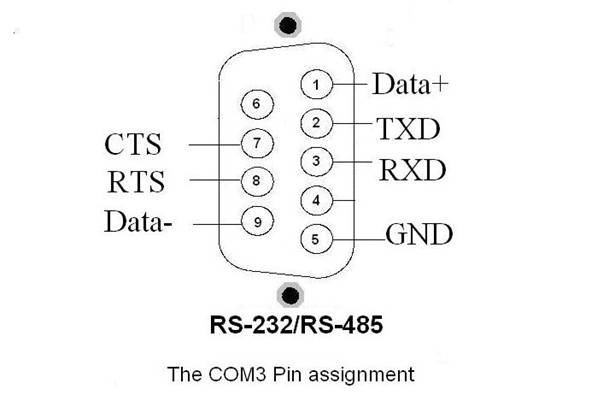

Pin assignment of COM1 Port
Step1: Mount the I/O unit
Method (a): using screw panel mounting
Method
(b): DIN-Rail mounting
Step2: Attach power supply (10 ~ 30 VDC)

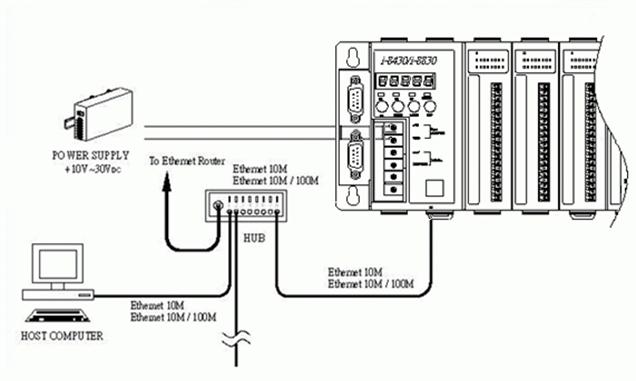

The diagrams below show the basic wiring for the Ethernet I/O.
